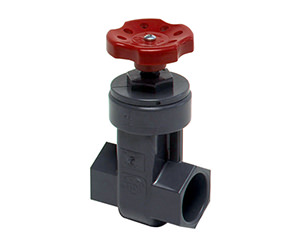

High-Pressure Gate Valves (VG)

PVC high pressure gate valves are used in controlling flows and where throttling capabilities are desired. These valves are constructed of Schedule 40 High-Impact PVC type II per ASTM D-1785, with polypropylene paddles. All sizes are available with slip fit or threaded connections.

  • Schedule 40 high-impact PVC Type II body (per ASTM D-1785)
  • Screw-in, faucet-type handle
  • Polypropylene paddle
  • Non-rising stem
  • Slip fit or threaded connections
  • 1-inch, 1¼-inch, 1½-inch, and 2-inch NPS sizes available



Product Codes

  • VG1000S — high-pressure gate valve, 1-inch (25-mm), slip fit
  • VG1000T — high-pressure gate valve, 1-inch (25-mm), threaded
  • VG1250S — high-pressure gate valve, 1¼-inch (32-mm), slip fit
  • VG1250T — high-pressure gate valve, 1¼-inch (32-mm), threaded
  • VG1500S — high-pressure gate valve, 1½-inch (40-mm), slip fit
  • VG1500T — high-pressure gate valve, 1½-inch (40-mm), threaded
  • VG2000S — high-pressure gate valve, 2-inch (50-mm), slip fit
  • VG2000T — high-pressure gate valve, 2-inch (50-mm), threaded


Technical Data Sheet

High-Pressure Gate Valve
