PF Series High-Flow Submersible Effluent Pumps (PF)

PF Series High-Flow Submersible Effluent Pumps are designed to transport screened effluent with low counts of Total Suspended Solids (TSS) in high-flow AdvanTex AX-Max and AX-Mobile Treatment Systems. They are also used in pump applications that require both high head and high flows. To provide high head and high flow, PF Series high-flow pumps combine a 6-inch (150-mm) liquid end and a 4-inch (100-mm) pump motor. PF high-flow pumps are lightweight and made of corrosion-resistant stainless steel and engineered plastics. They are field-serviceable with common tools. PF high-flow pumps are not rated for run-dry capability.

  • Lightweight
  • Constructed of corrosion-resistant stainless steel and engineered plastic
  • Requires 8-inch (200-mm) flow inducer
  • 60-Hz and 50-Hz models available
  • Super Stainless motor by Franklin Electric; rated for continuous use
  • Motor rated for frequent cycling
  • Type 14/4 SOOW 600-V motor cable for 145-gpm (9.2 L/sec) pumps and 3-phase 120-gpm (7.6 L/sec) pumps; suitable for Class I, Division 1 and Division 2 applications (145-gpm pumps)
  • Type 16/3 SOOW 600-V motor cable for single-phase 120-gpm (7.2 L/sec) pumps; suitable for Class I, Division 1 and Division 2 applications
  • 5-year warranty on pump or liquid end from date of manufacture against defects in materials or workmanship
  • CSA certified to US and Canadian safety standards
  • Manufactured exclusively for Orenco



Sample Product Codes*

  • PF1452012 — PF series high-flow submersible effluent pump; 145 gpm (9.2 L/sec); 2-hp (1.5 kW); 60-Hz; single phase; 230 VAC; 11.2 A; single impeller; 3-inch NPT, stainless steel discharge end; rated 100 cycles per day
  • PF1452032 — PF series high-flow submersible effluent pump; 145 gpm (9.2 L/sec); 2-hp (1.5 kW); 60-Hz; three-phase; 230 VAC; 6.7 A; single impeller; 3-inch NPT, stainless steel discharge end; rated 300 cycles per day
  • PF1452034 — PF series high-flow submersible effluent pump; 145 gpm (9.2 L/sec); 2-hp (1.5 kW); 60-Hz; three-phase; 460 VAC; 3.5 A; single impeller; 3-inch NPT, stainless steel discharge end; rated 300 cycles per day
  • PF1201552 — PF series high-flow submersible effluent pump; 120 gpm (7.2 L/sec); 1.5 hp (1.1 kW); 50-Hz; single phase; 220 VAC; 8.8 A; single impeller; 3-inch NPT, stainless steel discharge end; rated 100 cycles per day


* For the full range of available product options, contact your local Orenco Distributor or Orenco.



Technical Data Sheet - 60 Hz


Technical Data Sheet - 50 Hz

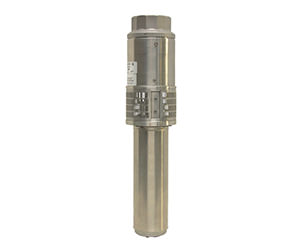

PF Series High-Flow Effluent Pump
