Stormwater Catch Basins (SCB)

Orenco® Stormwater Catch Basins provide a durable, cost-effective alternative to a concrete or steel catch basin. Their lightweight, durable PVC and fiberglass construction makes them quick to install, and their easy-to-remove filter screens make them simple to service and maintain.

  • Easy-to-remove filter
  • Screens materials to 1/8-inch (3 mm) diameter
  • Nominal open area of filter is 50%
  • 6-inch NPS (150-mm DN) inlet and outlet pipe couplings for SCB1236-6L model
  • 4-inch NPS (100-mm DN) inlet and outlet couplings for all other models
  • Includes durable fiberglass lid and mounting hardware on SCB1236-L and 1236-6L models



Product Codes

  • SCB0824 — catch basin, 8-inch nominal diameter (200-mm DN), 24-inch (610-mm) height
  • SCB0836 — catch basin, 8-inch nominal diameter (200-mm DN), 36-inch (914-mm) height
  • SCB1236 — catch basin, 12-inch nominal diameter (300-mm DN),
    36-inch (914-mm) height
  • SCB1236-L — catch basin, 12-inch nominal diameter (300-mm DN),
    36-inch (914-mm) height, 4-inch NPS (100-mm DN) level inlet and outlet
  • SCB1236-6L — catch basin, 12-inch nominal diameter (300-mm DN),
    36-inch (914-mm) height, 6-inch NPS (150-mm DN) level inlet and outlet


Technical Data Sheet

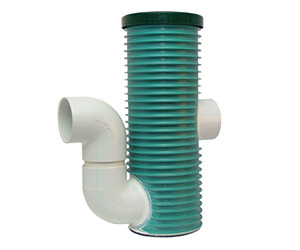

SCB1236-6L Stormwater Catch Basin
