Liquid-only Sewer Systems

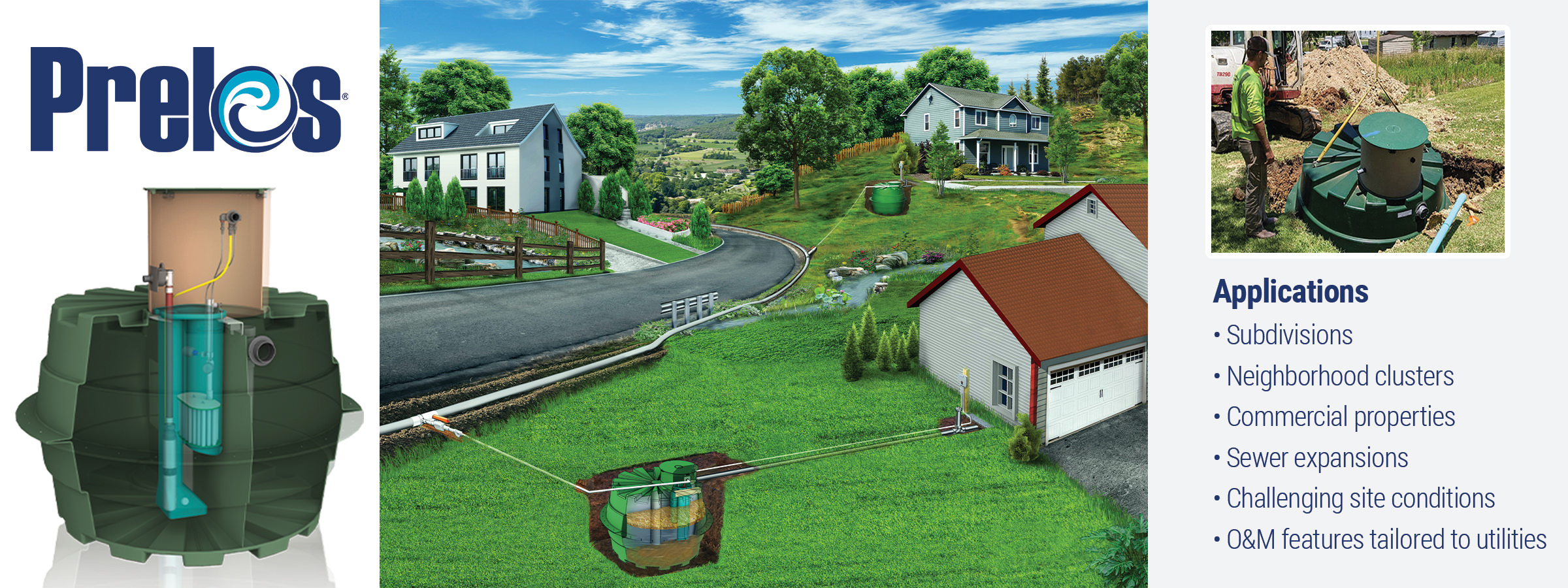

How It Works: Prelos Collection System

Prelos^® provides an efficient, affordable, and sustainable sewer solution for the thousands of towns across the country in need of sewer infrastructure, whether it’s new, an expansion, a repair, or replacement. The Prelos Sewer Collection System is based on concepts that’ve been in use for more than 50 years.

• Prelos uses small-diameter, pressurized, shallow-buried pipes that follow the contour of the land.
• Mainlines are often installed with directional boring, which doesn’t require trenching, and reduces negative impact to communities and properties.
• Like water mains, Prelos Sewer mains can be “surgically” extended to specific areas, streets, or new developments that need service most.
• Prelos reduces the volume of biosolids and final treatment costs.
• The cost to make Prelos Sewer mains available for connections can be as low as 10% of the cost of gravity sewer mains.

Key Features and Benefits

• All-in-one, complete unit
• Primary treatment and solids removal at the source
• No cost to install or maintain until customers connect
• Engineered to be watertight
• Made of lightweight DCPD, ideal for a buried tank
• Maximum solids reduction via patented meandering flow path
• Passively self-cleaning pump vault
• Simple to maintain with basic tools and equipment
• Easily serviced pumps and controls, thanks to Orenco’s ClickTight™ Wiring Connection System

The Prelos Processor pump package includes:

• Passively self-cleaning Biotube® Pump Vault
• Hanging Discharge Assembly (HDA) with high-head pump
• Biotube Effluent Filter
• ClickTight™ Wiring Connection System

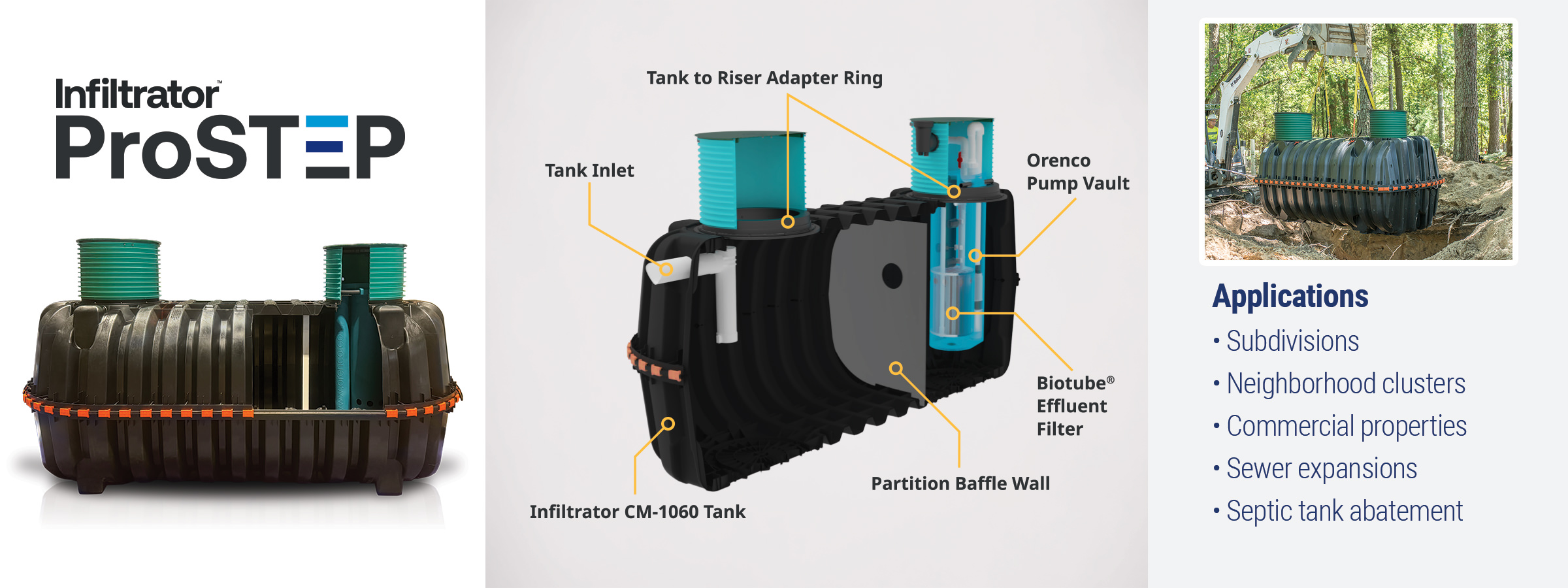

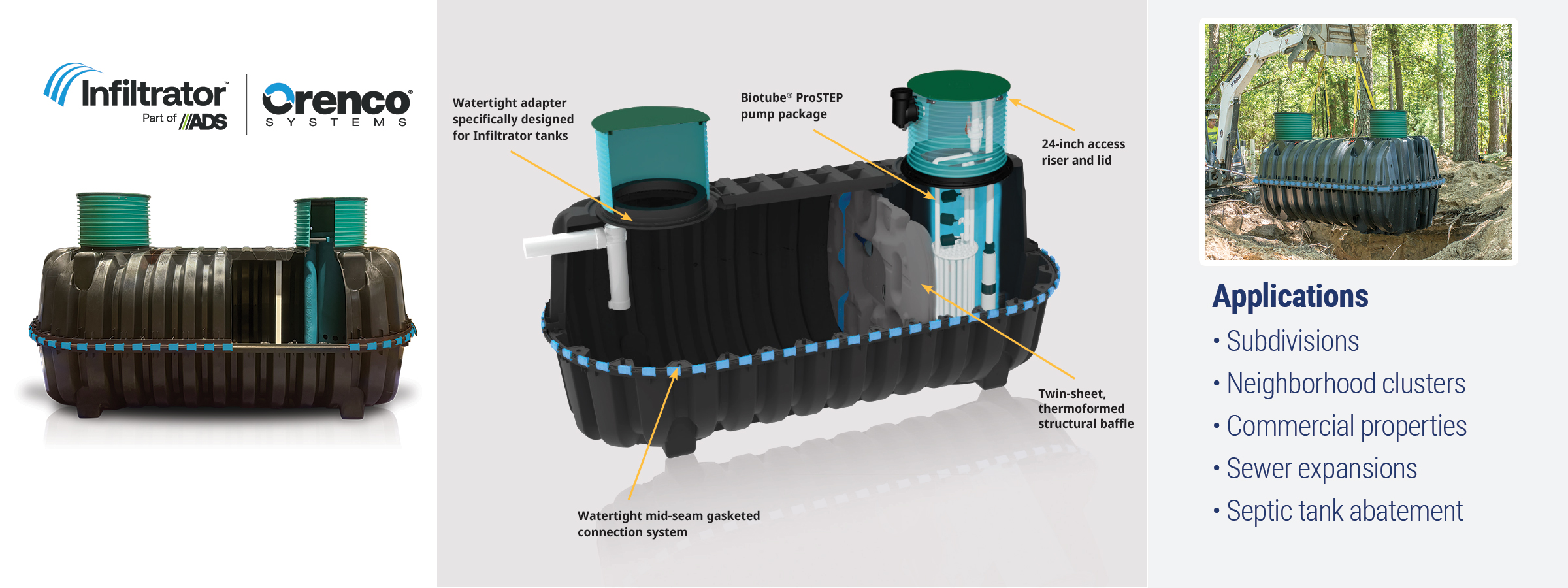

Infiltrator ProSTEP Effluent Pumping Package

The Orenco ProSTEP unit, combined with the Infiltrator tank, delivers a highly efficient, pressurized, liquid-only sewer system for on-site wastewater collection and treatment. Together, they protect, transport, and filter wastewater, making this advanced effluent pumping system ideal for diverse applications. The integrated Infiltrator ProSTEP offers a range of pump packages housed in lightweight, strong, and durable polypropylene tanks.

Key Features

• Protects Downstream Systems: The patented Biotube^® filter has several times the capacity of other filters, safeguarding lines, drainfields, and treatment systems from solids.
• Easy-Access Design: Service providers can simply remove the filter cartridge without pulling the pump or vault. Quick-release float stems and adjustable collars make maintenance simple and efficient.
• Superior Durability: Constructed from corrosion-resistant stainless steel, thermoplastic, and fiberglass materials, these systems outlast conventional brands by 3-4 times, reducing lifetime costs.
• Advanced Controls: The package includes optional MVP digital programmable panels for precise parameter settings and VeriComm® remote telemetry panels for 24/7 monitoring, verification, and communication – keeping systems virtually invisible to homeowners while providing peace of mind.
• Complete, Lightweight Package: It comes fully integrated with seven compatible components that install neatly into tanks, saving time and money. Tanks are designed to be 100% watertight, tested for strength, and available in 500-, 1000-, 1250-, and 1530-gallon sizes. Learn more about tanks here >
• Longevity and Efficiency: Pumps offer a 25+ year life with routine cleaning, minimum 24-hour run-dry capability, low power costs, and a five-year limited warranty.

Benefits

• Cost-Effective: Lightweight equipment reduces installation time and costs while providing superior performance.
• Reliable Filtration: Removes two-thirds of suspended solids, extending the life of downstream components.
• Customizable: Adaptable to various site conditions, with options for advanced monitoring.
• Environmentally Friendly: Supports sustainable wastewater management with durable, low-maintenance design.

System Components

The ProSTEP system includes seven high-quality, preassembled components for seamless integration:

1. Biotube Pump Vault

• Available in standard and custom heights.
• Handle assembly offers easy filter cartridge removal.
• Filters last longer between cleanings than other brands.
• External flow inducer accommodates one or two pumps.
• Removable float stem ensures proper positioning.

2. Splice Box or ClickTight™

• External splice box (external mounts flush-to-ground for watertight protection) offers UL-listed NEMA 6P protection.
• Protects wiring and is easy to access and maintain.
• ClightTight connection system option provides preset, easy-to-use color-coded connectors and system cable.

3. Risers, Lids, and Accessories

• Provide easy tank access.
• Strong access points are lightweight and tamper resistant.
• Secondary barrier options are available.
• Additional options are available.

4. Float Switch Assembly

• Provides reliable level control.
• Comes with quick-release stem and adjustable float collars.
• A variety of floats (including mercury-free) and arrangements are available.

5. Discharge Assembly

• Flexible design eliminates hard plumbing.
• Includes quick disconnect (union or cam-style), ball valve, and check valve.
• Options are available for cold weather, deep bury, and special situations.
• Hanging discharge-style assembly with pitless adapter is also available.
• Ensures easy access.

6. Effluent Pump

• Offers 25+ year life with routine cleaning.
• Lasts 3-4 times longer than conventional pumps.
• Capable of minimum 24-hour run dry.
• Lightweight (about 25 lb /11 kg) and field serviceable.
• Constructed with noncorroding stainless steel.
• UL and CSA listed for wastewater; multiple models are available.

7. Control Panel

• Engineered for wastewater applications with touch-safe components and NEMA 4X enclosures.
• Comes with smart digital and telemetry options.
• Generator receptacle and transfer switches are available.
• UL and UL-C listed; meets NEC Class I, Division 1 or 2 requirements.
• Three-year limited warranty come standard.
