Access Lids

Orenco^® DuraFiber™ Access Lids provide a secure, damage-resistant covering for ribbed PVC and HDPE risers, pump basins, and access ports. They are not recommended for vehicular traffic.

• Solid, resin-infused fiberglass construction
• 24-inch and 30-inch lids available (600-mm and 750-mm)
• 20,000-lb breaking strength (9,000 kg)
• Standard green or brown colors
• Available with or without urethane lid gasket
• Available with carbon filtration
• 4 stainless steel flathead socket cap screws and hex key wrench included

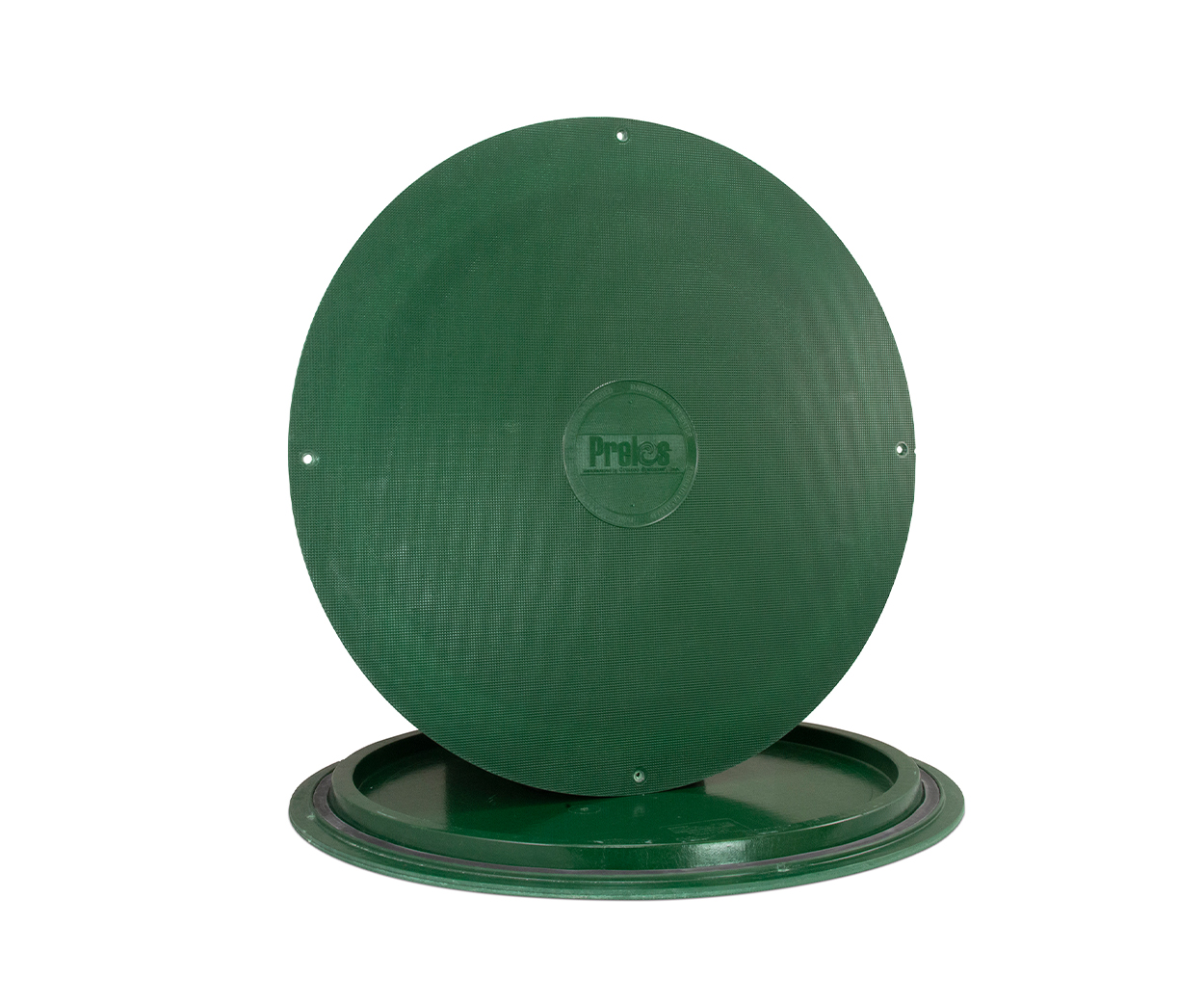

Orenco^® offers imprinting of custom logos, with customer-supplied images, on quantity orders of 24-inch and 30-inch diameter (600-mm and 750-mm) DuraFiber™ lids.

• Solid, resin-infused fiberglass construction
• 20,000-lb breaking strength (9,000 kg)
• Available with or without lid gasket

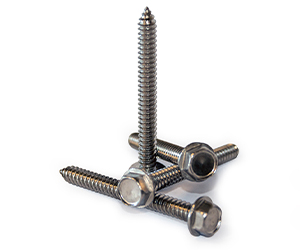

Orenco^® Lid Bolts, Screws, and Lid Screw Kits do a great job of attaching fiberglass lids to PVC risers.

• Hex-drive screw and bolt heads fit flush to lid surface
• Pinned, hex-drive bolts require a special wrench for increased tamper resistance
• Hex-drive screws require a hex key or bit for removal

Orenco^® FLF-Series provide a strong, secure solution for covering access risers, pump basins and access ports. Fiberglass-reinforced polymer resin around a structural foam core give FLF-Series lids exceptional strength and durability. They can withstand a 2,500-lb (1134-kg) wheel load; however, FLF-Series Lids are not rated for vehicular traffic. Made in the USA.

• Fiberglass construction over structural foam core
• Lids available for 18-inch, 21-inch, 30-inch, nominal diameter access risers (450-mm, 525-mm, and 750-mm DN)
• Lightweight, non-degradable core
• Textured, non-skid surface
• Green or brown color
• Polyurethane gasket used in models with gaskets
• Optional lids with carbon filtration available
• Includes stainless steel mounting hardware

In addition to standard green and brown access lids, Orenco^® offers Landscape Lids in grass, bark, and river rock patterns for selected DuraFiber™ and FL-Series fiberglass lids.

• 24-inch and 30-inch (600-mm and 750-mm) DuraFiber lids available; 18-inch and 21-inch sizes for FL-Series lids (450-mm and 525-mm)
• 20,000-lb breaking strength (9,000 kg)
• Solid, resin-infused fiberglass construction on 24- and 30-inch DuraFiber™ lids (600- and 750-mm)
• Fiberglass construction over structural core material on 18- and 21-inch FL-Series lids (460- and 535-mm)
• Available with or without lid gasket
• Stainless

Orenco^® Fiberglass Access Caps are used as strong, uniform access covers for valve boxes and tank hatches. Gasketed models provide a watertight seal between the lid and the access riser. Orenco Fiberglass Access Caps are rated for pedestrian traffic only. Made in the USA.

• Fiberglass construction
• Caps available for 8-inch, 12-inch, and 15-inch nominal diameter (200-mm, 300-mm, and 375-mm DN) risers
• Available with or without lid gasket
• Available with smooth or non-skid surface
• Available in green or white colors

Orenco^® FBL-Series Fiberglass Access Lids provide a strong, secure solution for covering Orenco-brand fiberglass access risers and fiberglass basins. They are strong enough to support a 2,500-lb (1134-kg) wheel load (but are not rated for vehicular traffic). FBL-Series Lids are not intended for use with PVC access risers or basins.

• Fiberglass construction over structural foam core
• Lightweight, non-degradable core
• R6 (1.0 RSI value) insulation value
• Textured, non-skid surface
• EPDM gasket, standard
• Green or tan color
• Includes stainless steel mounting hardwares
