Control Panels

A-Series simplex panels from Orenco Controls™ are used to control pump motors and alarm functions in simplex pumping systems. They are intended as a low-cost option for pump controls into gravity or pressurized drainfields or for effluent sewers (aka STEP sewers or Septic Tank Effluent Pumping systems), especially where cost is the critical factor.

• Low-cost
• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breaker
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Type 4X (IP 66) rated enclosure
• Motor-rated pump on/off float switch ordered separately
• Limited optional features available

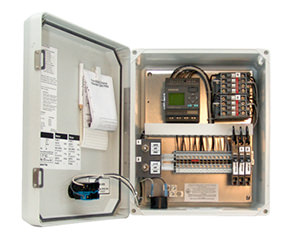

MVP-Series duplex panels are digital, programmable panels used to control two alternating pumps and provide alarm functions in onsite septic systems, drainfields, effluent sewers (aka STEP sewers or Septic Tank Effluent Pumping systems), and pressure sewers that require the use of two alternating pumps. Built-in alternating logic switches the “lead” and “lag” positions each pump cycle, and allows one pump to be manually selected and locked in for lead operation.

MVP duplex panels offer several functions as standard, including elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactors for pump circuits
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Built-in elapsed time meter
• Built-in event counter
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately

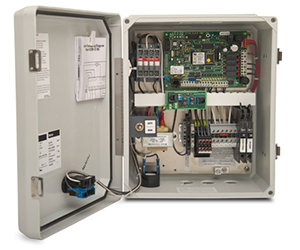

VeriComm^® (VCOM) Simplex Control Panels are digital, programmable, remote telemetry panels used to control single pumps in residential systems and decentralized wastewater collection. All VCOM Simplex Control Panels are compatible with the VeriComm Monitoring System, a web-based remote monitoring system available with a monthly subscription. The VeriComm Monitoring System gives wastewater system operators and service providers the ability to remotely monitor and control the performance of an individual site over the Internet, saving money on operation and maintenance while remaining virtually invisible to the homeowner.

The VCOM panel and VeriComm Monitoring System are integral components of a complete remote monitoring system and cannot be ordered separately from each other.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breaker
• Motor-start contactor for pump circuit
• Automatic/Manual (Auto/Man) spring-loaded toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Communication and alarm management
• “Start-up,” “Test,” and “Normal” operating modes
• Data collection and logs
• Troubleshooting and diagnostic logic
• Remote telemetry
• Advanced control logic for normal operation in the event of float failure
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately
• IP connection kit ordered separately

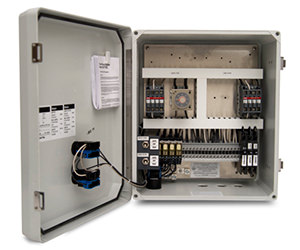

Orenco’s SSF-Series control panels are electromechanical panels used to control two pumps when pumping from point “A” (first pump) to point “B,” and then from point “B” (second pump) to point “C,” and to provide alarm functions in sand filters and other systems where controls for motors in series are required. Interlocked controls prevent the first (upstream) pump from running if a high-level alarm condition occurs in the downstream pump.

SSF-Series panels include motor contactors, which increase system life by reducing the load requirements on the float switches.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactors for pump circuits
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately

S-Series simplex panels are electromechanical panels used to control single pumps and alarm functions in onsite septic systems and effluent sewers (aka STEP sewers or Septic Tank Effluent Pumping Systems). They are also used to provide pump control with alarm functions into gravity sewer systems. S-Series panels include a motor contactor, which increases system life by reducing the load requirements on the float switches. Options such as analog timers and event counters are available.

Pump motors used with these panels require internal overload protection.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breaker
• Motor-start contactor for pump circuit
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Type 4X (IP 66) rated enclosure
• Timer option available

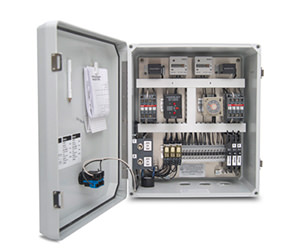

DAX-Series duplex panels are electromechanical panels used to control two alternating pumps and provide alarm functions in onsite septic systems, drainfields, effluent sewers (aka STEP sewers or Septic Tank Effluent Pumping systems), and pressure sewers that require the use of two alternating pumps. A built-in alternating relay switches the “lead” and “lag” positions each pump cycle, and allows one pump to be manually selected and locked in for lead operation. DAX-Series panels include motor contactors, which increase system life by reducing the load requirements on the float switches.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactors for pump circuits
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red visible alarm
• 95 dB audible alarm
• Automatic alarm silence reset
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately

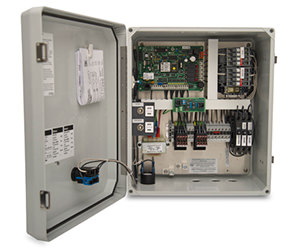

VeriComm^® AXB control panels are digital, programmable, remote telemetry panels used to control a recirculation pump and a discharge pump, as well as provide alarm functions in AdvanTex^® Treatment Systems. Interlocked controls prevent the recirculation pump from running if there is a high-level alarm on the discharge side.

All VCOM AXB Control Panels are compatible with the VeriComm Monitoring System, a web-based remote monitoring system available with a monthly subscription. The VeriComm Monitoring System gives wastewater system operators and service providers the ability to remotely monitor and control the performance of an individual site over the Internet, saving money on operation and maintenance while remaining virtually invisible to the homeowner. It also allows remote operators to change system parameters, including timer settings, from the web interface.

These panels are only sold as part of an AdvanTex Treatment System or as a replacement for a VCOM AXB panel.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactor for pump circuits
• Automatic/Manual (Auto/Man) spring-loaded toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Communication and alarm management
• “Start-up,” “Test,” and “Normal” operating modes
• Data collection and logs
• Troubleshooting and diagnostic logic
• Remote telemetry
• Advanced control logic for normal operation in the event of float failure
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately
• IP connection kit ordered separately

Orenco’s Standard TCOM Telemetry Control Panels are a costeffective, standardized means of providing custom pump and system controls in commercial and municipal AdvanTex™ Treatment Systems.

Orenco’s Standard TCOM Telemetry Control Panels remotely monitor and control treatment systems with real-time efficiency, while remaining invisible to the public. They give wastewater system operators and maintainers the ability to use one control panel model for a variety of AdvanTex™ Treatment System layouts.

Standard TCOM panels retain the best features of Orenco’s custom control panels, with added flexibility. Operators incorporate systems-specific operations by inputting key features to tailor the panel to the project.

• Easy to use, field-settable software
• 1- and 3-phase motor power
• Ventilation Fan Controller
• Remote alarm indicators
• Flow meters
• 4G modem for remote connectivity

MVP-Series simplex panels are digital, programmable panels used to control single pumps and provide alarm functions in onsite septic systems and effluent pumping systems. They include easy-to-use, programmable logic units that incorporate multiple built-in timing and logic functions, including multiple timer intervals to adjust for changing flow conditions. MVP panels offer several functions as standard, including elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breaker
• Motor-start contactor for pump circuit
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Built-in elapsed time meter
• Built-in event counter
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately

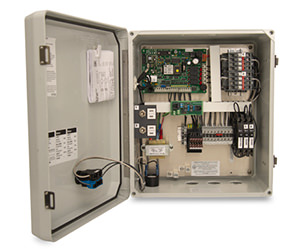

VeriComm^® (VCOM) Duplex Control Panels are digital, programmable, remote telemetry panels used to control two alternating pumps and provide alarm functions in onsite septic systems, drainfields, effluent sewers (aka STEP sewers or Septic Tank Effluent Pumping systems), and pressure sewers that require the use of two alternating pumps. Built-in alternating logic switches the “lead” and “lag” positions each pump cycle.

All VCOM duplex control panels are compatible with the VeriComm Monitoring System, a web-based remote monitoring system available with a monthly subscription. The VeriComm Monitoring System gives wastewater system operators and service providers the ability to remotely monitor and control the performance of an individual site over the Internet, saving money on O&M while remaining virtually invisible to the homeowner.

VCOM panels and VeriComm Monitoring Systems are integral components of complete remote monitoring systems and cannot be ordered separately from each other.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactor for pump circuits
• Automatic/Manual (Auto/Man) spring loaded toggle switch
• 7/8-in (22-mm) red visible alarm
• 95 dB audible alarm
• Automatic alarm silence reset
• Communication and alarm management
• “Start-up,” “Test,” and “Normal” operating modes
• Data collection and logs
• Troubleshooting and diagnostic logic
• Remote telemetry
• Advanced control logic for normal operation in the event of float failure
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately
• IP connection kit ordered separately

Orenco’s MVP SSF Control Panels are digital, programmable panels used to control two pumps when pumping from point “A” (first pump) to point “B,” and then from point “B” (second pump) to point “C,” and to provide alarm functions in systems where controls for motors in series are required. Interlocked controls prevent the first (upstream) pump from running if a high-level alarm condition occurs in the downstream pump.

MVP SSF Control Panels include easy-to-use, programmable logic units that incorporate multiple timing and logic functions, including multiple timer intervals to adjust for changing flow conditions.

MVP SSF panels offer several standard functions, including elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions. In dual-mode MVP SSF control panels, the downstream pump can be configured in the field for demand-dose or timed-dose applications.

• 120-VAC controls circuit breaker
• 120- or 120/240-VAC pump circuit breakers
• Motor-start contactors for pump circuits
• Automatic/Off/Manual (Auto/Off/Man) toggle switch
• 7/8-in (22-mm) red alarm light
• 95 dB audible alarm
• Automatic alarm silence reset
• Built-in elapsed time meter
• Built-in event counter
• Type 4X (IP 66) rated enclosure
• Mechanical or mercury float switches ordered separately

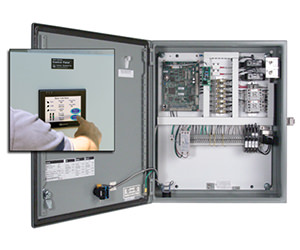

TCOM™ Custom Control Panels by Orenco Controls™ are cost-effective, digital, integrated telemetry panels that include controls for multiple applications, along with data logging, remote access, and control, all in real time.

TCOM panels require a dedicated phone line or data line to connect to a computer equipped with TCOM Viewer — or TCOM Viewer with optional graphical view — and a modem. When alarm conditions occur, notifications are sent to pagers. Panels can be accessed directly at the site with our Bluetooth wireless connection kit.

Because they provide many of the benefits of costly SCADA systems at a fraction of the cost, TCOM Custom Control Panels are ideal for stand-alone monitoring and control systems. In addition to our full line of standard options, custom options are available, such as...

• 1- and 3-phase motor power
• Seal failure sensors
• Over-temperature sensors
• Over- and under-current sensors
• Additional alarm lights or alarm circuits
• Remote alarm indicators
• Flow meters
• Wireless connection kit ordered separately
• Custom logic
