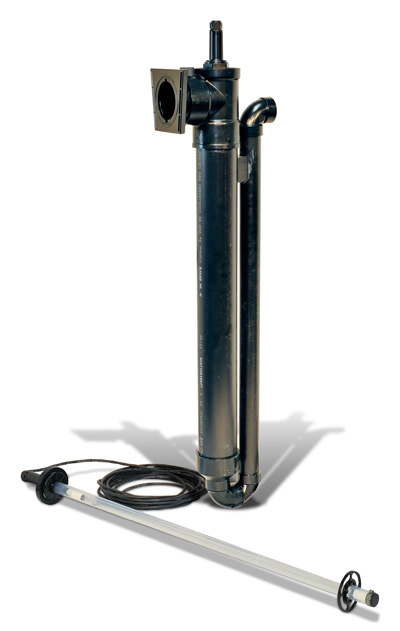

UV Disinfection Units
Orenco UV Disinfection Units are designed for residential and small flow applications after advanced secondary treatment (10 mg/L or less for CBOD5 and TSS) when disinfection is required before dispersal. They require installation inside a pump basin, gravity discharge basin, or a separate tank following an advanced secondary treatment system. The power ballast, current sensor, and controls are housed externally, to protect electronic components from environmental damage.
- UL recognized for US and Canada
- 125 μW/cm2 lamp output
- Design maximizes contact time between lamp and effluent
- Reduction of bacteria by 5 logs (99.999%)
- Quick-disconnect fitting for easy inspection and unit cleaning
- Teflon sleeve to protect lamp and minimize buildup and service intervals
- Power ballast and lamp current sensor housed in control panel (not in wet well) to minimize failure due to environmental exposure
- Integrated components and controls — no piecemeal assemblies and wiring
- 25ft or 50ft (7.6m or 15.2m) power cord options available
- Recommended to replace lamp annually
