Explosion-Proof Splice Boxes (SBX)

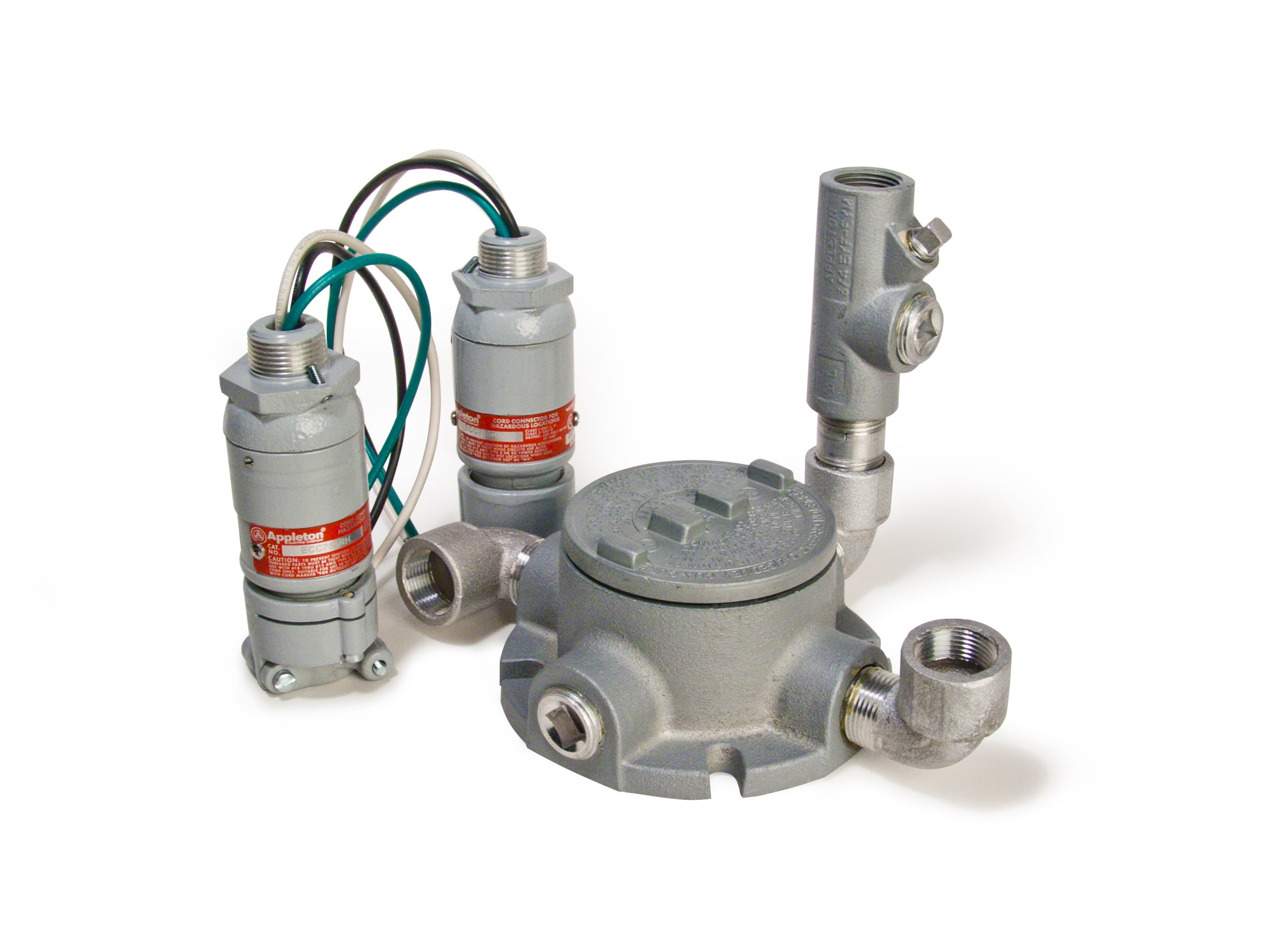

Orenco Explosion-Proof Splice Boxes are designed to be used in localities where the explosion-proof feature is required by code. They're installed inside of access risers to house spliced wire connections between an electrical control panel and equipment like effluent pumps and float switches. All components used in Orenco’s explosion-proof splice boxes are UL listed.

  • Conforms to NEC Class I Groups C&D, Class II Group G, and Class III
  • Corrosion-resistant enclosure
  • Copper-free aluminum construction
  • 1 cord port for incoming control panel wiring
  • Up to 3 cord ports for pump wiring
  • NEMA 7CD, 9G cord connectors
  • Ground screw hub on enclosure
  • Seal fitting is sealed with Chico “A” sealing compound
