Low-Head Vault Packages

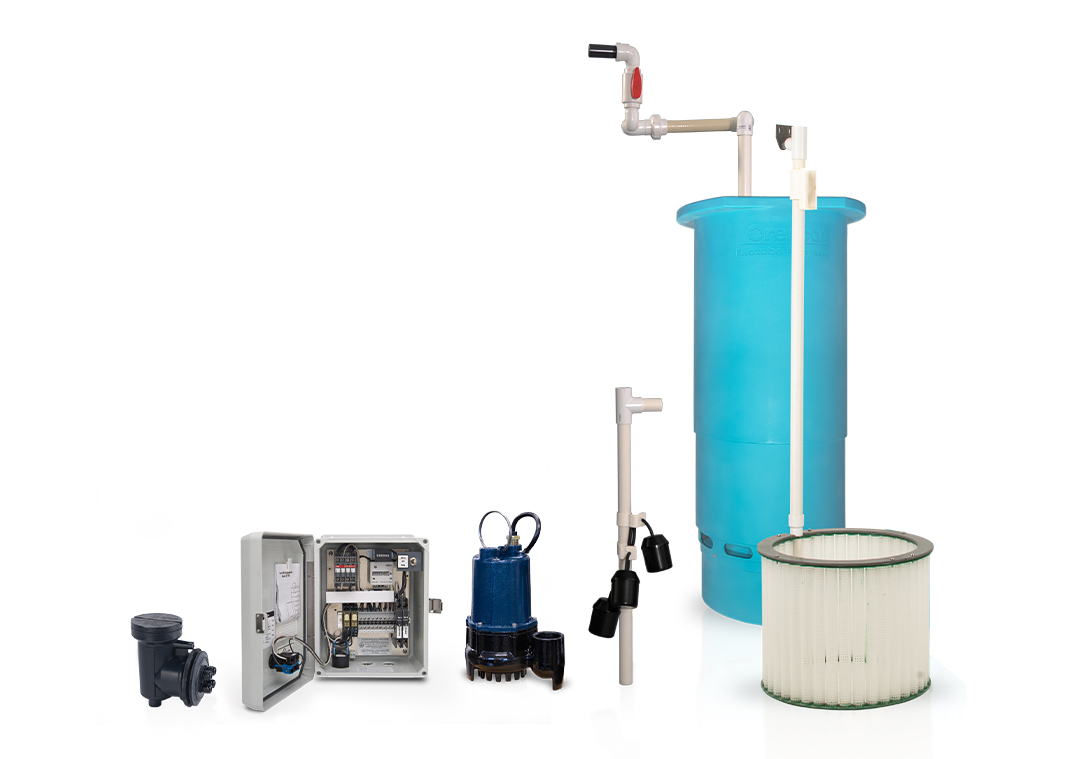

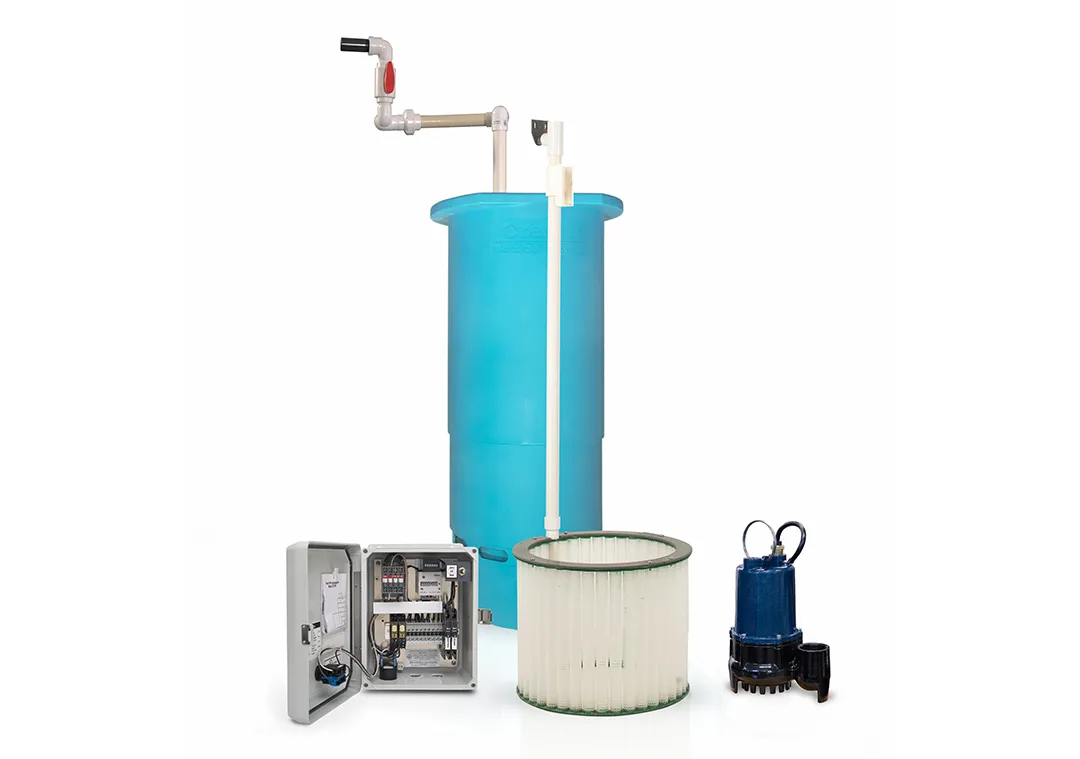

Orenco® Biotube Low-Head Vault Packages (BLHP) make it easy to select and install the correct pump vault and accessories. They are available with a variety of components designed to work
together, reducing installation time and errors. The patent-pending Biotube vault is passively self-cleaning, which can extend periods between cleanings. The vault allows removal of the effluent filter for cleaning without removing the pump vault, to simplify service and maintenance work.

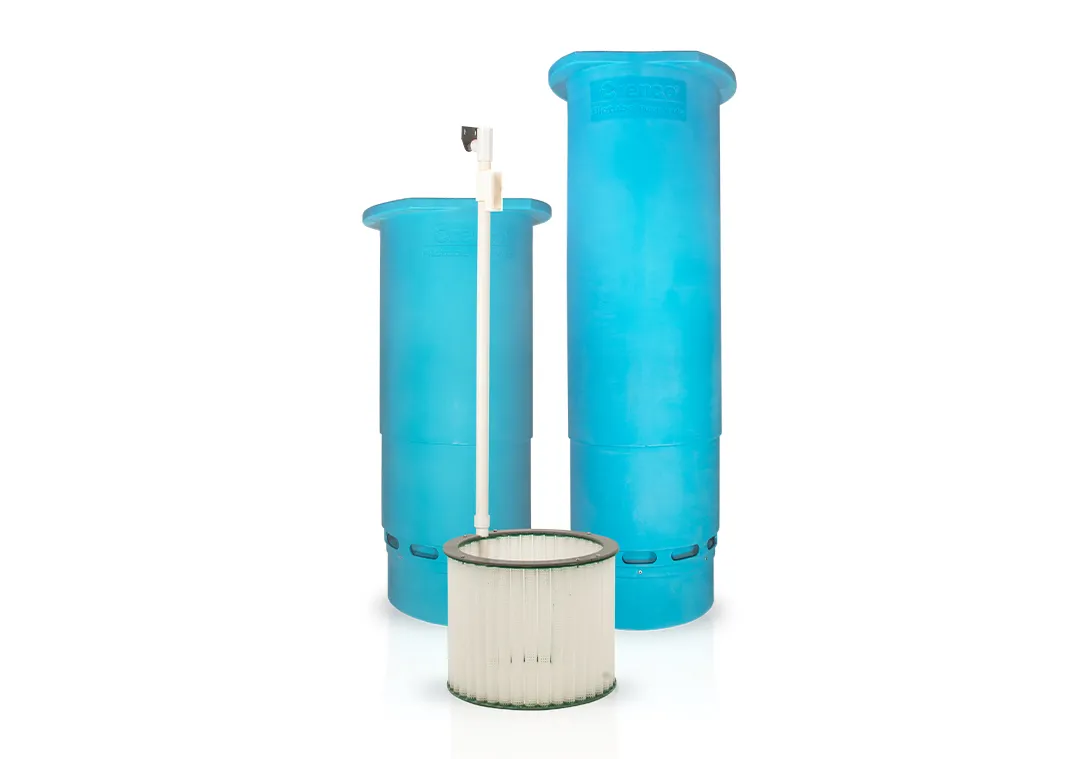

- Durable, one-piece polyethylene vault construction
- 46- and 60-inch (1168- and 1524-mm) vault heights (46-inch recommended for Infiltrator™ tanks)
- 17.88-inch (455-mm) vault diameter supports up to 14.1-inch (358-mm) diameter pumps
- Biotube filtration in passively self-cleaning configuration
- 1/8- or 1/16-inch (3.2- or 1.6-mm) filter mesh
- 12.5 square feet (1.16 square meters) total filter surface area
- 3.8 square feet (0.35 square meters) filter flow area
- 1/3- or 1/2-hp (0.25- and 0.37-kW) pumps
- Removable float switch assembly
- Alarm panel or control panel options
- Three-year warranty
