PF-Series Submersible Effluent Pumps
New Products

PF-Series Submersible Effluent Pumps

Home Products breadcrumb separator Gravity & Pump Products

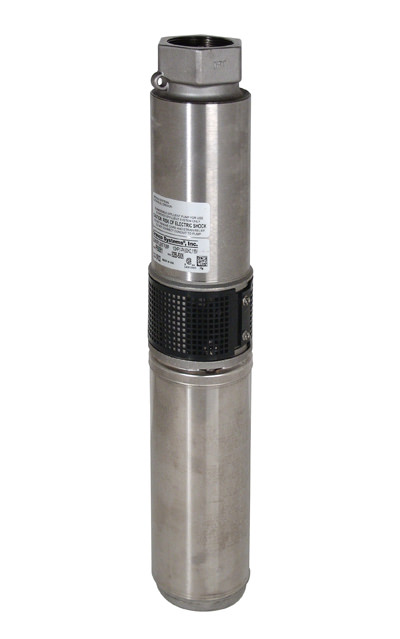

PF-Series 4in (100mm) Submersible Effluent Pumps

PF-Series 4in (100mm) Submersible Effluent Pumps are designed to transport screened effluent with low counts of Total Suspended Solids (TSS) from septic tanks, dosing tanks, and pump vaults. They're constructed of lightweight, corrosion-resistant stainless steel and engineered plastics. All PF-Series 4in (100mm) pumps are field-serviceable and repairable with common tools.

  • Lightweight
  • Constructed of corrosion-resistant stainless steel and engineered plastic
  • For use with a Biotube® Pump Vault or after secondary wastewater treatment
  • 60Hz and 50Hz models available
  • Minimum 24-hour run-dry capability (liquid end) with no deterioration in pump life or performance [excludes 5hp (3.73kW) models]
  • 1/8in (3mm) bypass orifice (patent pending) to ensure flow recirculation for motor cooling and to prevent air bind
  • Super Stainless motor by Franklin Electric; rated for continuous use
  • Rated for frequent cycling
  • Type SOOW 600-V motor cable; suitable for Class I, Division 1 and Class I, Division 2 applications
  • Repairable liquid end (repair kits available)
  • TRI-SEAL™ floating impeller design on 10, 20, and 30gpm (0.6, 1.3, and 1.9L/sec) models; floating stack design on 50 and 75gpm (3.2 and 4.7L/sec) models
  • CSA certified to US and Canadian safety standards
  • 5-year warranty on pump or retrofit liquid end from date of manufacture against defects in materials or workmanship
  • Manufactured exclusively for Orenco
