ProPak Pump Packages

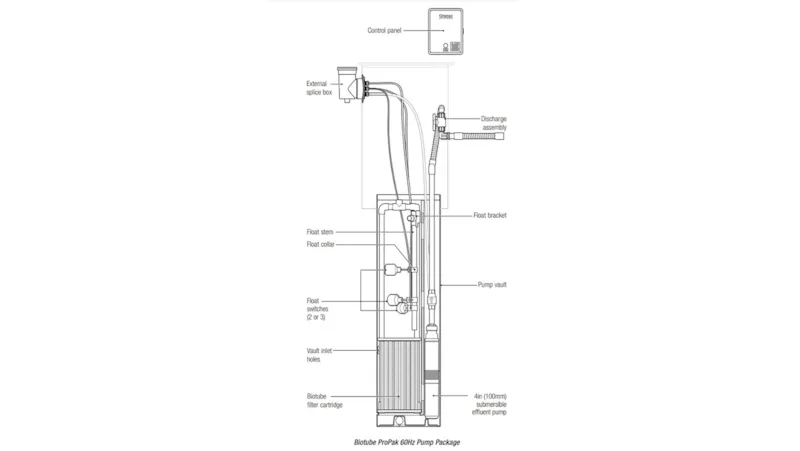

Orenco® Biotube® ProPak Pump Packages (BPP) are complete, integrated pump packages for filtering and pumping effluent from septic tanks or pump tanks to either gravity or pressurized discharge points. Their patented pump vault technology eliminates the need for separate dosing tanks.
- Three series of corrosion-resistant, stainless steel, 4-in (100-mm) effluent pumps available
- Polyethylene and PVC pump vault construction
- Polyethylene and PVC filter construction
- Float switch assembly and float switches available
- ClickTight™ connection system, external splice box, or internal splice box available
- Demand-dose, analog timed-dose, or digital timed-dose control panel available
- Total filter surface area: 14.5 ft2 (1.35 m2) to 30 ft2 (2.79 m2)
- Maximum flow rate: 140 gpm (8.8 L/sec)
- 60-Hz or 50-Hz operation
- 10-, 30-, and 50-gpm (0.6-, 1.9-, and 3.2-L/sec) versions available
- 1/8-in or 1/16-in (3-mm or 1.5-mm) filter mesh available
- Five-year warranty
