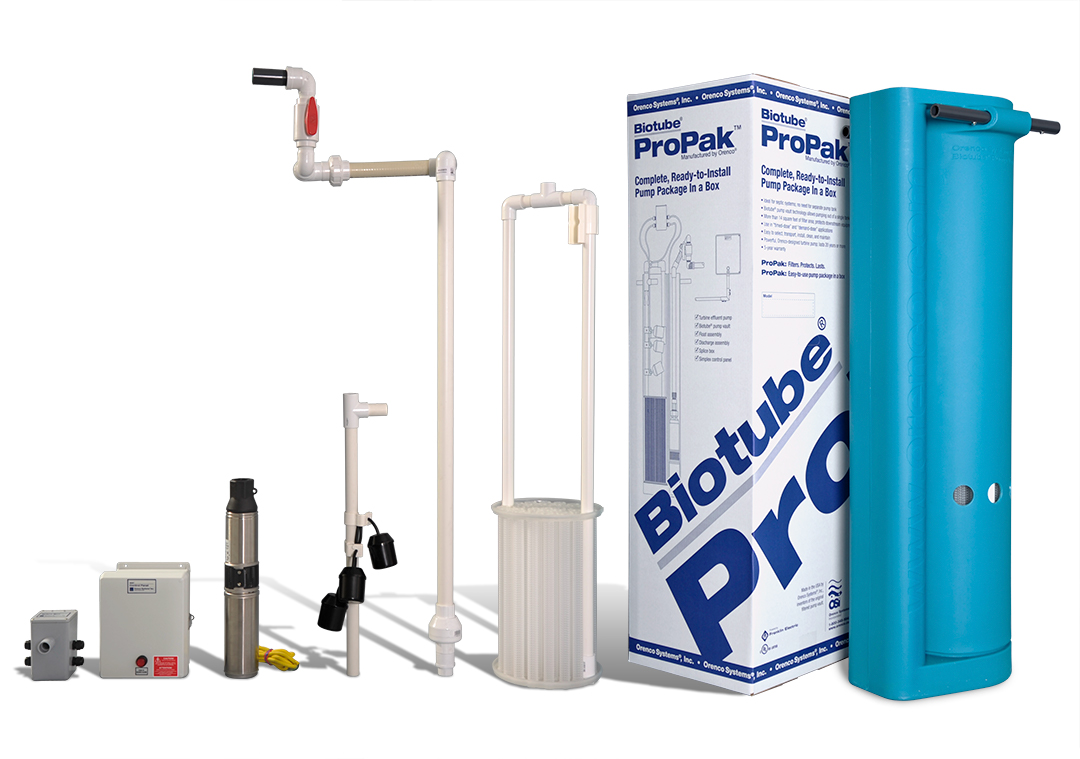

Biotube ProPak Pump Package

ProPak™ Pump Packages (BPP)

Orenco® Biotube® ProPak™ Pump Packages are complete, integrated pump packages for filtering and pumping effluent from septic tanks or pump tanks. They are designed to filter and pump effluent to either gravity or pressurized discharge points. And their patented pump vault technology eliminates the need for separate dosing tanks.

  • 10-, 30-, and 50-gpm (0.6, 1.9, and 3.2 L/sec) versions available
  • 60-Hz or 50-Hz operation
  • Two models of corrosion-resistant, stainless steel 4-inch (100-mm) turbine effluent pumps available
  • Polyethylene and PVC pump vault construction
  • Polyethylene and PVC filter construction
  • 1/8-inch (3-mm) or 1⁄16-inch (1.5-mm) filter mesh available
  • 14.5 ft2 (1.35 m2) total filter surface area
  • 140 gpm (8.8 L/sec) maximum flow rate
  • Float switch assembly and float switches available
  • Internal or external splice box available
  • Demand-dose, analog timed-dose, or digital timed-dose control panel available
  • 5-year warranty

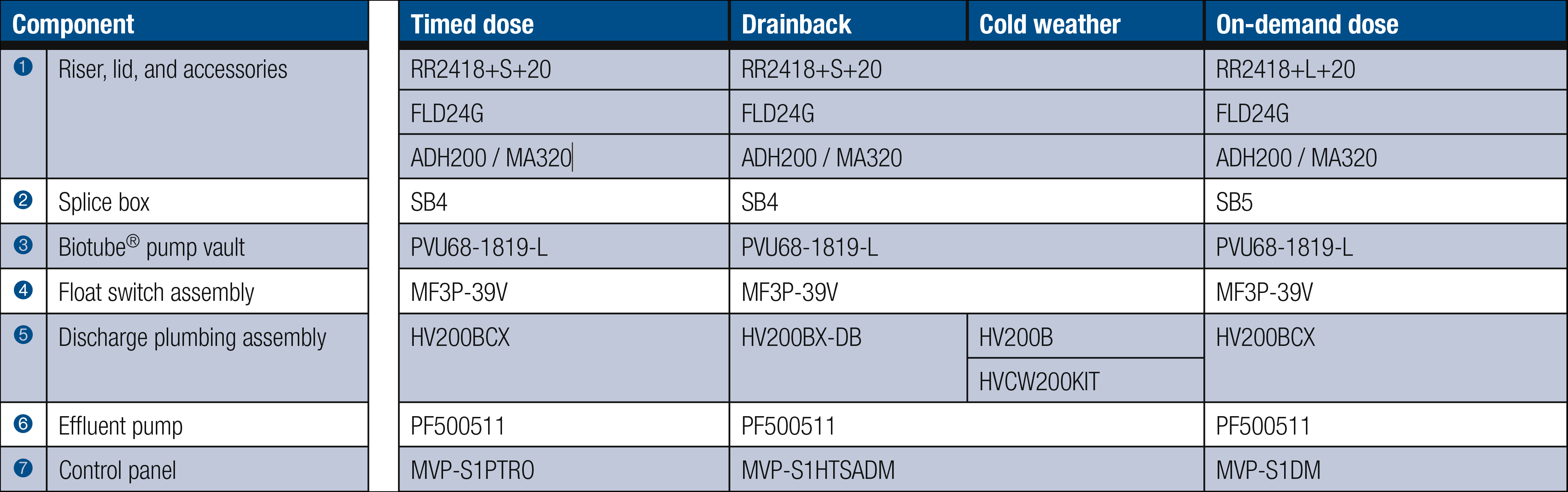

Simplex Effluent Pumping Packages (flow rates up to 70 gpm)

These sample component pumping packages are used to pump effluent from a dosing tank to a secondary treatment system or final dispersal area. The first column below shows a standard, programmable timed-dose pumping package and its components. The other two columns give drainback/cold weather and on-demand dose variations. Refer to the individual component sections in the catalog for assistance in selecting the specific models suitable for your application.

Simplex Effluent Pumping Packages

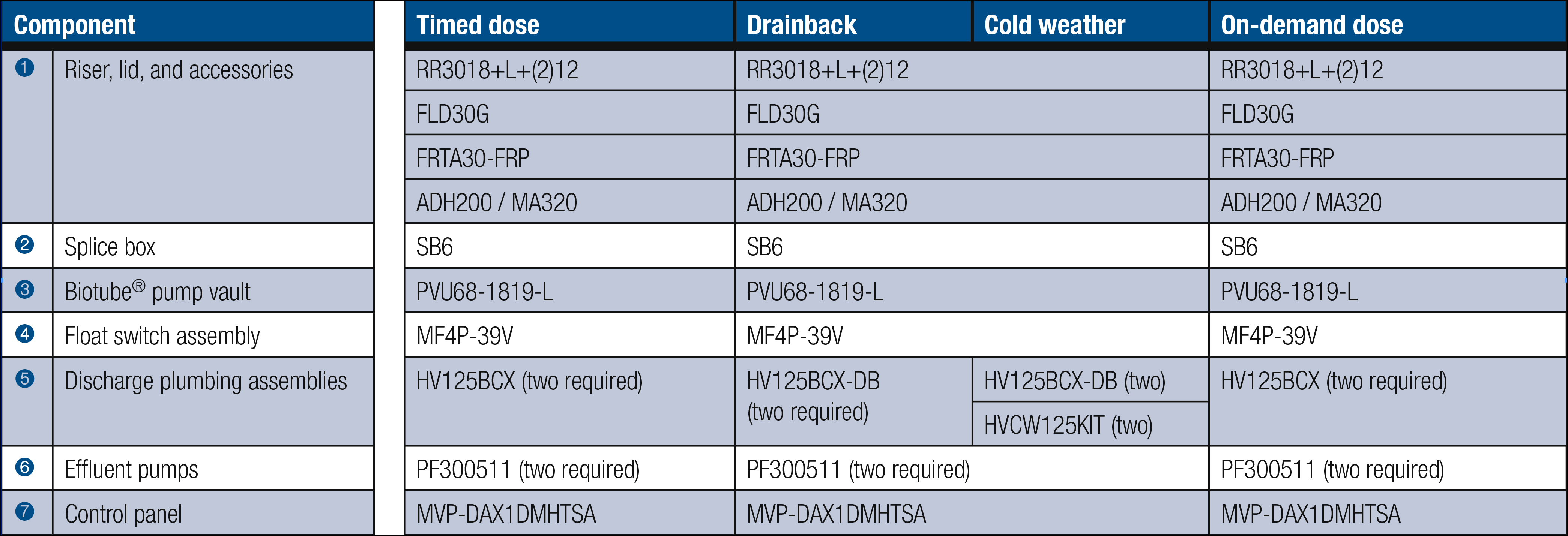

Duplex Effluent Pumping Packages (flow rates up to 70 gpm)

These sample component pumping packages are used to pump effluent from a septic or dosing tank to a secondary treatment system or final dispersal area. The first column below shows a standard, programmable timed-dose, alternating duplex pumping package and its components. The other two columns give drainback/cold weather and on-demand dose variations. All of these packages use two alternating pumps. Refer to the individual component sections in the catalog for assistance in selecting the specific models suitable for your application.

Duplex Effluent Pump Package
