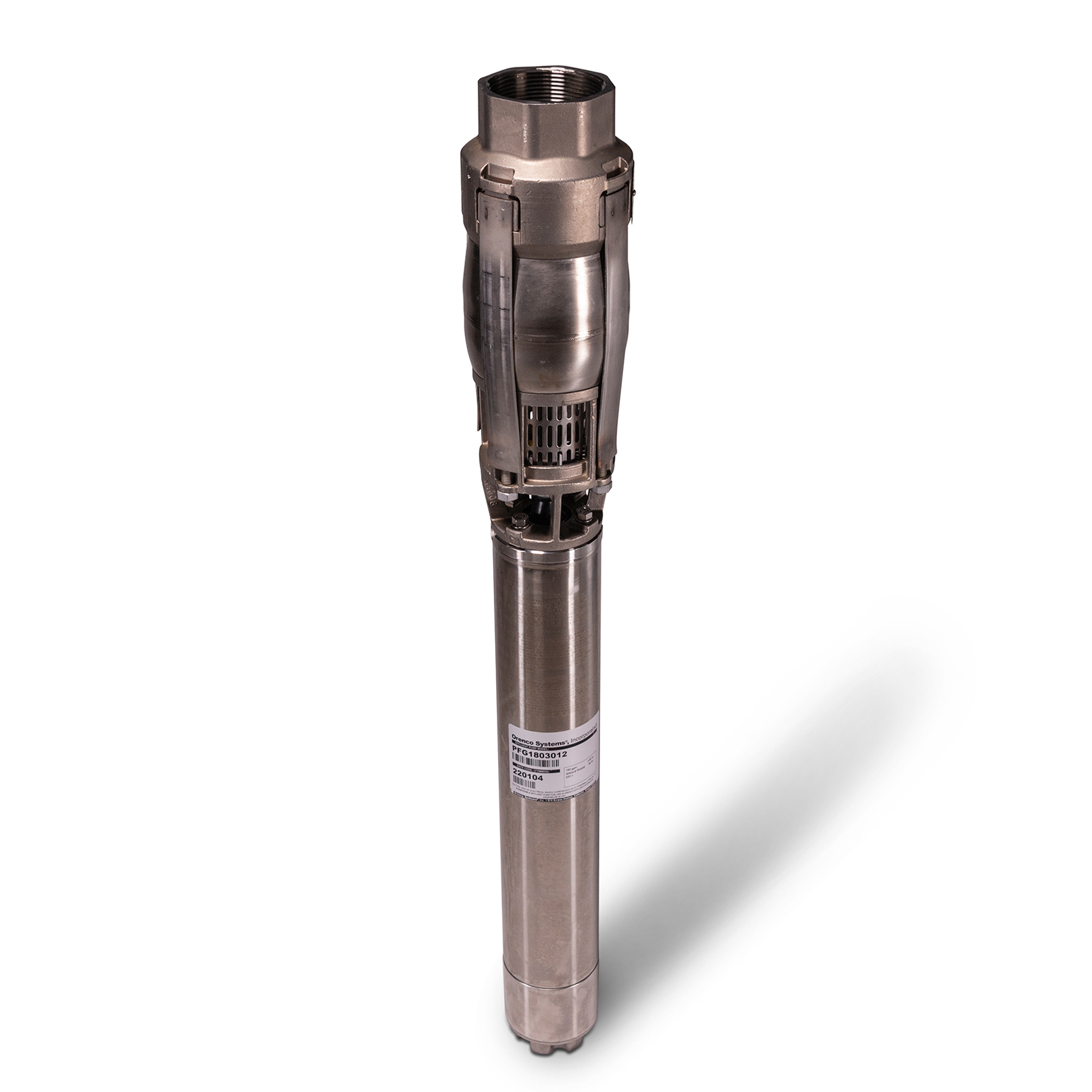

PFG-Series High-Flow Submersible Effluent Pumps
PFG-Series High-Flow Submersible Effluent Pumps are designed to transport screened effluent with low counts of Total Suspended Solids (TSS) in AdvanTex® AX-Max™ and AX-Mobile™ Treatment Systems. They're also used in pump applications that require both high head and high flows. To provide high head and high flow, PFG-Series high-flow pumps combine a 6in (150mm) liquid end and a 4in (100mm) pump motor. PFG high-flow pumps are made of corrosion-resistant stainless steel. They're field-serviceable with common tools. PFG high-flow pumps are not rated for run-dry capability.
- Constructed of corrosion-resistant stainless steel
- Requires 7in (200mm) flow inducer
- Grundfos 6in (150mm) liquid end
- Super Stainless motor by Franklin Electric; rated for continuous use
- Motor rated for frequent cycling
- Available in a 180gpm (11.4L/sec)
- Available in 2HP (1.5kW) and 3HP (2.2kW)
- Type 14/4 SOOW 600V motor cable suitable for Class I, Division 1 and Class I, Division 2 applications
- 5-year warranty on pump or liquid end from date of manufacture against defects in materials or workmanship
- CSA certified to US and Canadian safety standards
