FT-Series Biotube® Base Inlet Effluent Filters

Home Products breadcrumb separator Gravity & Pump Products

FT-Series Biotube Base Inlet Effluent Filters

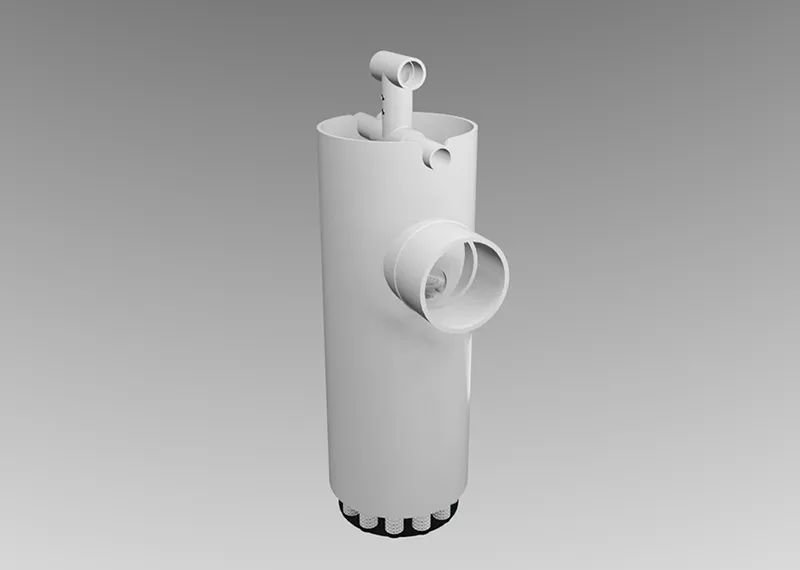

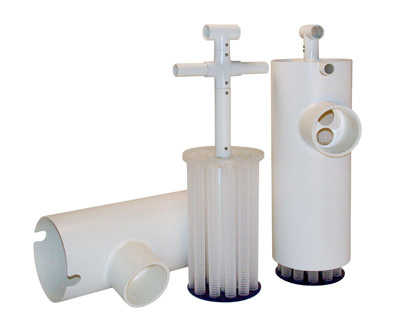

Orenco FT-Series Biotube Base Inlet Effluent Filters remove about two-thirds of suspended solids from effluent, helping extend drainfield life. They have the flow area of a full-size effluent filter in a small package for short septic tanks. These filters install on Schedule 40 or Type 3034 outlet pipe of a new or existing tank. They come with a filter cartridge, PVC housing, and an extendable PVC handle. An optional overflow plate is available for 8in (200mm) models, to prevent effluent from bypassing the filter if it clogs.

  • 8in (200mm) nominal filter diameter
  • 14in (356mm) filter height, standard
  • 22in (559mm) housing height, standard
  • 1/8in (3mm) or 1/16in (1.5mm) filter mesh available
  • Corrosion-proof construction
  • Extendable handle
  • Easy to clean
  • Optional overflow plate available
  • Optional float elbow available for high-level alarm assembly
  • High-level alarm assembly ordered separately
  • Limited warranty
