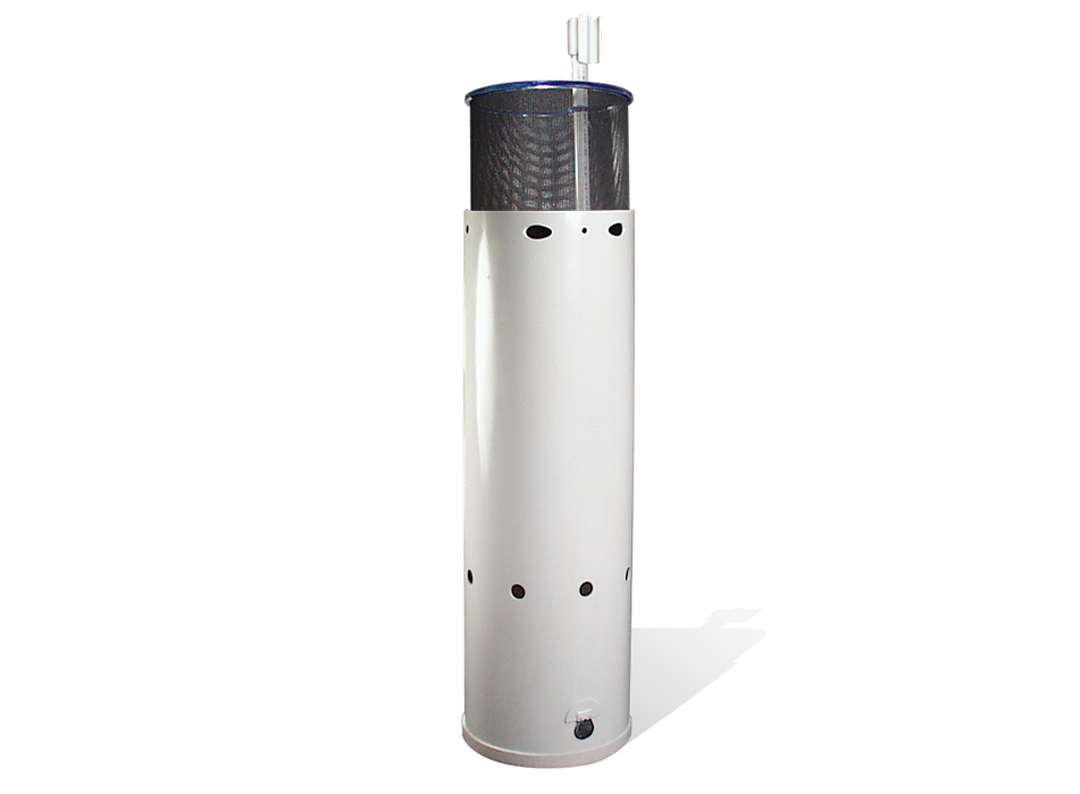

Screened Pump Vaults (SV)
Screened Pump Vaults manufactured by Orenco® are designed to
screen effluent for low-head effluent pumps in single-compartment
and two-compartment septic tanks and dose tanks. They include a PVC
vault, polyethylene effluent screen, and two support pipes. Screened
Pump Vaults are not typically recommended for use with high-head
effluent pumps. Contact Orenco for more information.
- For low-head effluent pumps
- For use in single-compartment tanks
- 15-inch (380-mm) vault diameter
- 48-96 inch vault height, available in 6-inch increments (1220-2434
mm in 150-mm increments)
- Eight inlet holes in vault (inlet height specified by customer)
- 1/8-inch (3-mm) screen mesh
- 50% nominal open area in screen mesh
Note: If you are using a high-head effluent pump, we recommend using a Biotube Pump Vault instead of screened pump vaults.

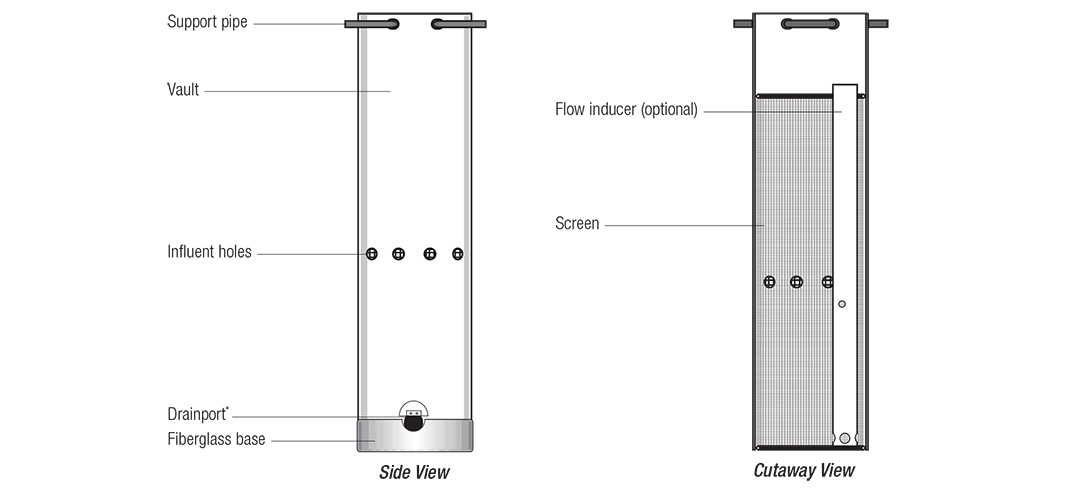

Typical Screened Pump Vault (SV)
Orenco Screened Vaults are used to screen effluent being pumped
from septic tanks in STEP systems and in on-site wastewater disposal
systems.
