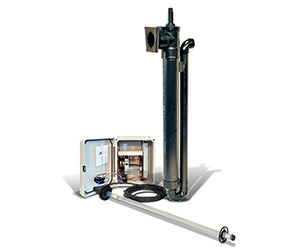

Orenco^® UV Disinfection Units are designed for residential applications after advanced secondary treatment (10 mg/L or less for CBOD₅ and TSS) when disinfection is required before dispersal. They require installation inside a pump basin, gravity discharge basin, or a separate tank following an advanced secondary treatment system. The power ballast, current sensor, and controls are housed externally, to protect electronic components from environmental damage.

• UL-recognized for US and Canada
• 125 μW/cm² lamp output
• Maximum contact time between lamp and effluent
• Reduction of bacteria by 5 logs (99.999%)
• Quick-disconnect fitting for easy inspection and unit cleaning
• Teflon sleeve to protect lamp and minimize buildup and service intervals
• Power ballast and lamp current sensor housed in control panel (not in wet well) to minimize failure due to environmental exposure
• Integrated components and controls — no piecemeal assemblies and wiring
• 25- or 50-ft (7.6- or 15.2-m) power cord length

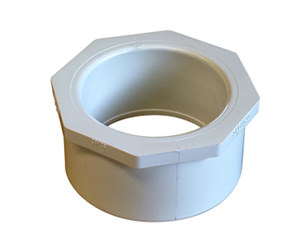

Orenco^® Carbon Filter Bushings are used to adapt an Orenco CF3 or CF4 Carbon Filter to an existing vent outlet of a smaller diameter.

• Activated, impregnated carbon material
• Pre-sized for Orenco Carbon Filters

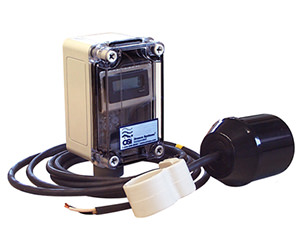

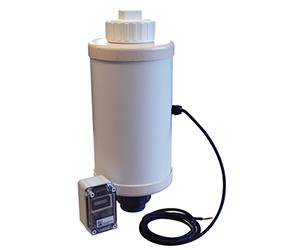

The AMSSII Siphon Sitter II Kit is an in-drainfield monitor used to record the number of times a drainfield is dosed. The signal float is contained in a baffled canister. For alternating dual-siphon systems, one kit is needed for each siphon.

• AMDDC Digital Dose Counter (3.2-VDC long-life lithium battery included)
• Signal-rated float switch
• Baffled canister

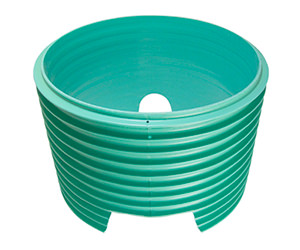

Orenco^® Hydrosplitter Enclosures are used to provide a secure, protective housing for hydrosplitters.

• PVC construction
• Standard 24-inch and 30-inch nominal diameter (600-mm or 750- mm DN) enclosures available
• Standard 12-inch, 18-inch, and 24-inch (305-mm, 457-mm, and 610- mm) enclosure heights available
• Allows easy transport and discharge line installation
• Secures and protects hydrosplitter manifold
• Easy access for O&M

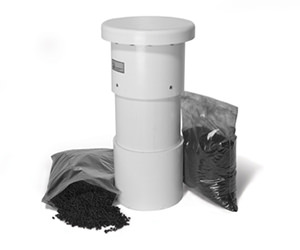

Orenco^® Carbon Filter Recharge Packages provide a clean, simple way to replace the carbon material in an Orenco Carbon Filter or Orenco Fiberglass Access Lid equipped with carbon filtration.

• Activated, impregnated carbon material
• Pre-sized for Orenco Carbon Filters

The AMDDC Digital Dose Counter accurately records and stores dosing events, typically in systems where dosing siphons are used.

• Suitable for use with any dry contact signal
• Type 4X (IP 66) rated enclosure
• Rain-tight enclosure with viewing window
• Battery-powered (3.2-VDC long-life lithium battery included)
• Signal-rated float switch ordered separately

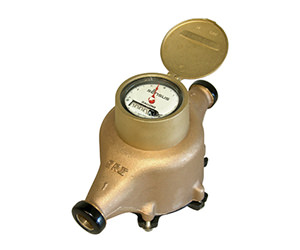

Orenco^® Flow Meters are used to measure cumulative flow through a transport line. They are typically used in applications where permits require exact measurement of flows, such as to a drainfield.

• 5/8-inch, 3/4-inch, 1-inch, 1-1/2-inch, and 2-inch (16-mm, 19-mm, 25-mm, 38-mm, 50-mm) models available
• Male threaded connection standard for 5/8-inch, 3/4-inch, and 1-inch (16-mm, 19-mm, and 25-mm) models
• Unions and slip connections available on 5/8-inch, 3/4-inch, and 1-inch (16-mm, 19-mm, and 25-mm) models
• Female threaded connection for 1-1/2-inch and 2-inch (38-mm, 50- mm) models
• Telemetry-equipped flow meters available by special order

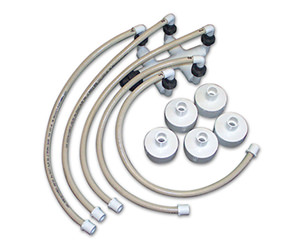

Orenco^® Hydrosplitters are used to provide equal doses of screened effluent to multiple laterals or zones in gravity drainfields, regardless of the length of the laterals used in the drainfield. A dose pump is used to transport effluent to the hydrosplitter, which then doses all of the drainfield laterals by gravity.

Each Hydrosplitter is built to the specific needs of a particular drainfield. For information on ordering a Hydrosplitter for your project, call Orenco.

• Works with pump or siphon discharge to hydrosplitter
• Schedule 40 PVC construction
• 1/2-inch to 4-inch NPS (15-mm to 100-mm DN) sizes available for fittings, unions, and flow controllers
• 1/2-inch to 2-inch NPS (15-mm to 50-mm DN) sizes available for flexible outlet hose
• Flow Control Disc orifices sized in 1/64-inch (0.396-mm) increments

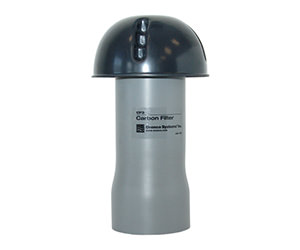

Orenco^® Carbon Filters are passive ventilation filters used to reduce the odor of sewage gases in systems that ventilate using passive airflow. They are easy to attach to a vent pipe. Carbon filters use activated impregnated carbon in replaceable packages. The cap is removable to allow replacement of the carbon package.

• 3-inch, 4-inch, and 6-inch NPS diameters (80-mm, 100-mm and 150-mm DN)
• Slip-fit
• UV-resistant
• ABS and PVC construction (CF3 and CF4)
• Fiberglass and PVC construction (CF6 )
• Polyethylene screen plate
• Replaceable carbon packages

The AMSSI Siphon Sitter I Kit uses a signal float switch installed inside of a dosing siphon to record dosing events.

• AMDDC Digital Dose Counter (3.2-VDC long-life lithium battery included)
• Signal-rated float switch
• Float switch collar
• Dosing siphons in 2-inch, 3-inch, 4-inch, 6-inch, and 8-inch (50-mm, 80-mm, 100-mm, 150-mm, and 200-mm)
• Signal-rated float switch ordered separately

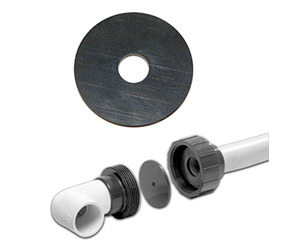

Orenco^® Flow Control Discs and Flow Control Assemblies are used in pressurized distribution systems to equalize flow in laterals of varying elevations and lengths. The size of the orifice in the flow control assembly is based on multiple factors.

• 1/2-inch, 1-inch, 1-1/4-inch, 1-1/2-inch, and 2-inch NPS diameters (15- mm, 25-mm, 32-mm, 40-mm, and 50-mm DN) available for Flow Control Discs
• 1-inch, 1-1/4-inch, 1-1/2-inch, and 2-inch NPS diameters (25-mm, 32-mm, 40-mm, and 50-mm DN) available for Flow Control Assemblies
• Flow Control Disc orifices sized in 1/64-inch (0.396-mm) increments
• Blank Flow Control Discs are available

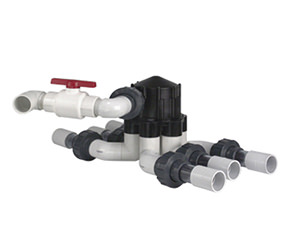

Orenco^® Distributing Valve Assemblies are used to dose filtered effluent to multiple-zone pressure distribution systems including drainfields, textile filters, and sand filters. They are automatically operated by mechanical means — with a combination of pressure and flow — to sequentially redirect the pump’s flow to multiple zones or cells.

Custom-built enclosures are available for Orenco Distributing Valve Assemblies. Call Orenco for details.

• Automatic, mechanical operation
• Multiple flow ranges available
• Allows use of smaller horsepower pumps on large drainfields and sand filters
• Schedule 40 PVC fittings, unions, ball valves, and pipe
• ABS polymer and stainless steel distribution valves
• 2-4 outlet units and 5-6 outlet units available
• 1-¼ inch or 1-½ inch NPS (32 or 40 mm DN) inlet and outlet sizes
• 170-foot or 345-foot (52-m or 105-m) maximum head pressures available
• Custom-built enclosures available
